Optical Network Terminals (ONTs) are devices that convert fiber optic signals to Ethernet signals that can be handled by typical routers. As the connection between home and business networks to internet service providers’ (ISPs) fiber-optic networks, they’re often loaded with custom firmware with ISP-specific configurations and passwords.
Sites like Hack GPON and Hacking RTL960x document how to gain access to a multitude of ONT models. There’s even a blogpost on how to access Singtel’s ZTE ZXA10 F620G via telnet or web console.
Recently, I switched internet subscriptions and no longer needed my Link-All LAU-G150-C ONT. Since the model is not documented anywhere, I thought this was a great opportunity to practice some hardware hacking.
Getting a UART Foothold 🔗
The LAU-G150-C looks extremely similar to the Huawei HG8010H with one Passive Optical Network (PON) input port, one ethernet output port, and a simple power button.
However, unlike many of the models documented on Hack GPON, the LAU-G150-C appeared to be reasonably hardened. I first connected to it directly over ethernet and tried the typical hard-coded static IPs like 192.168.100.1 and 192.168.10.1 (ONTs typically don’t serve DHCP) but could not find any exposed ports or ping the device.
As such, I decided to look for a hardware interface. It took significant effort to pry the cover off and I realised belatedly that there was a screw hidden underneath a sticker that was causing all this trouble.

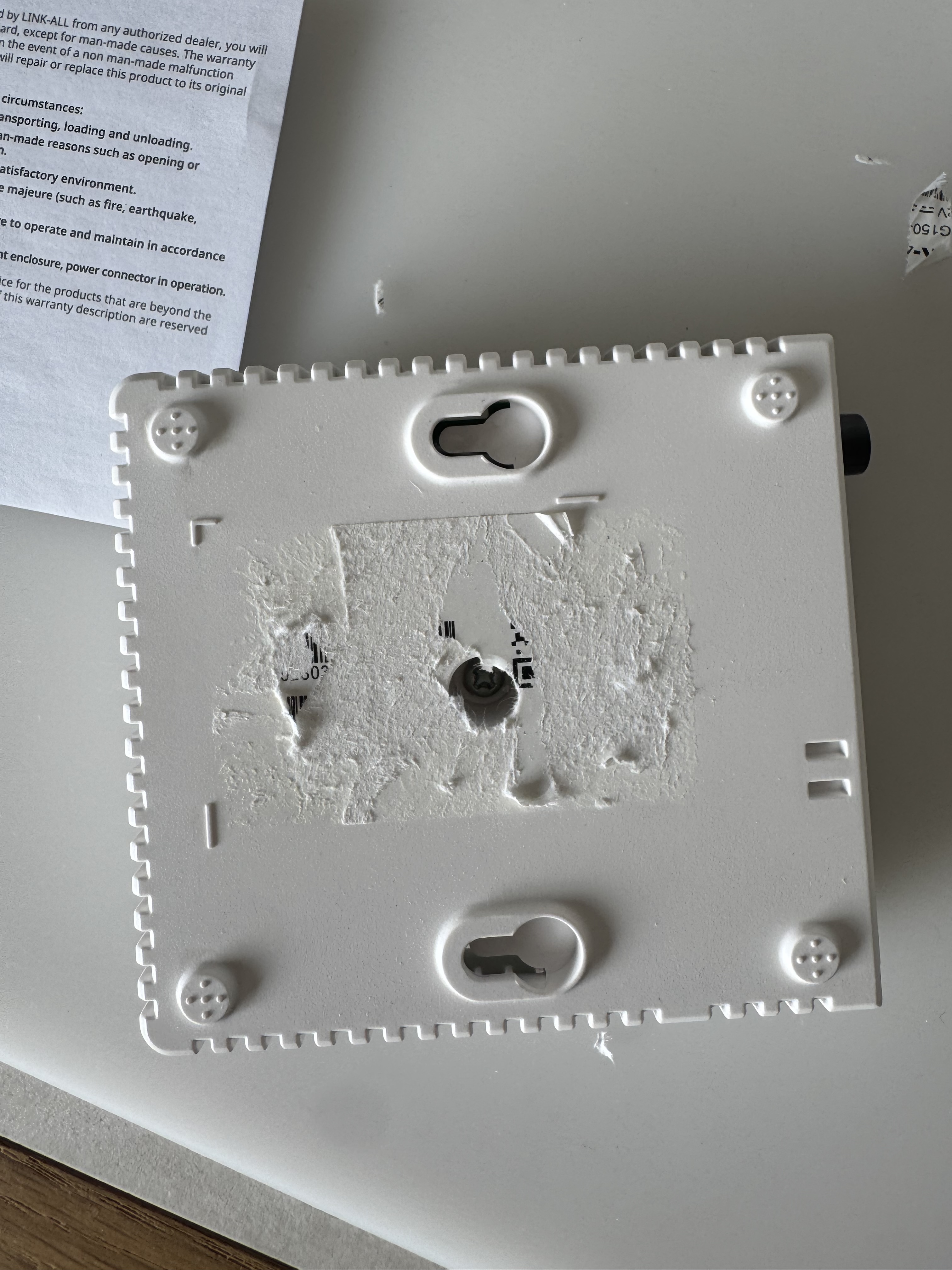

Hardware hacking hot tip #1: Check for hidden screws under stickers!

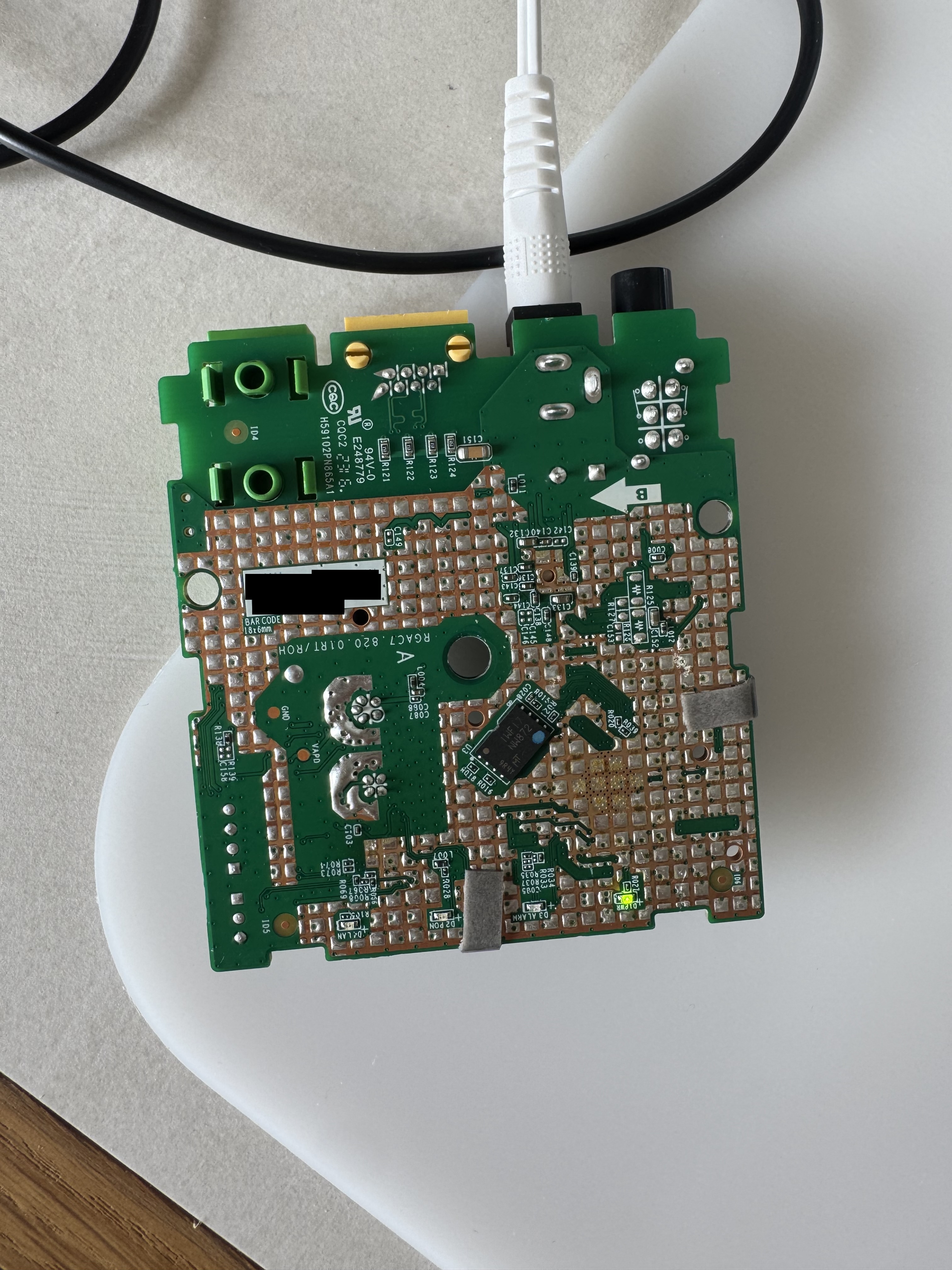

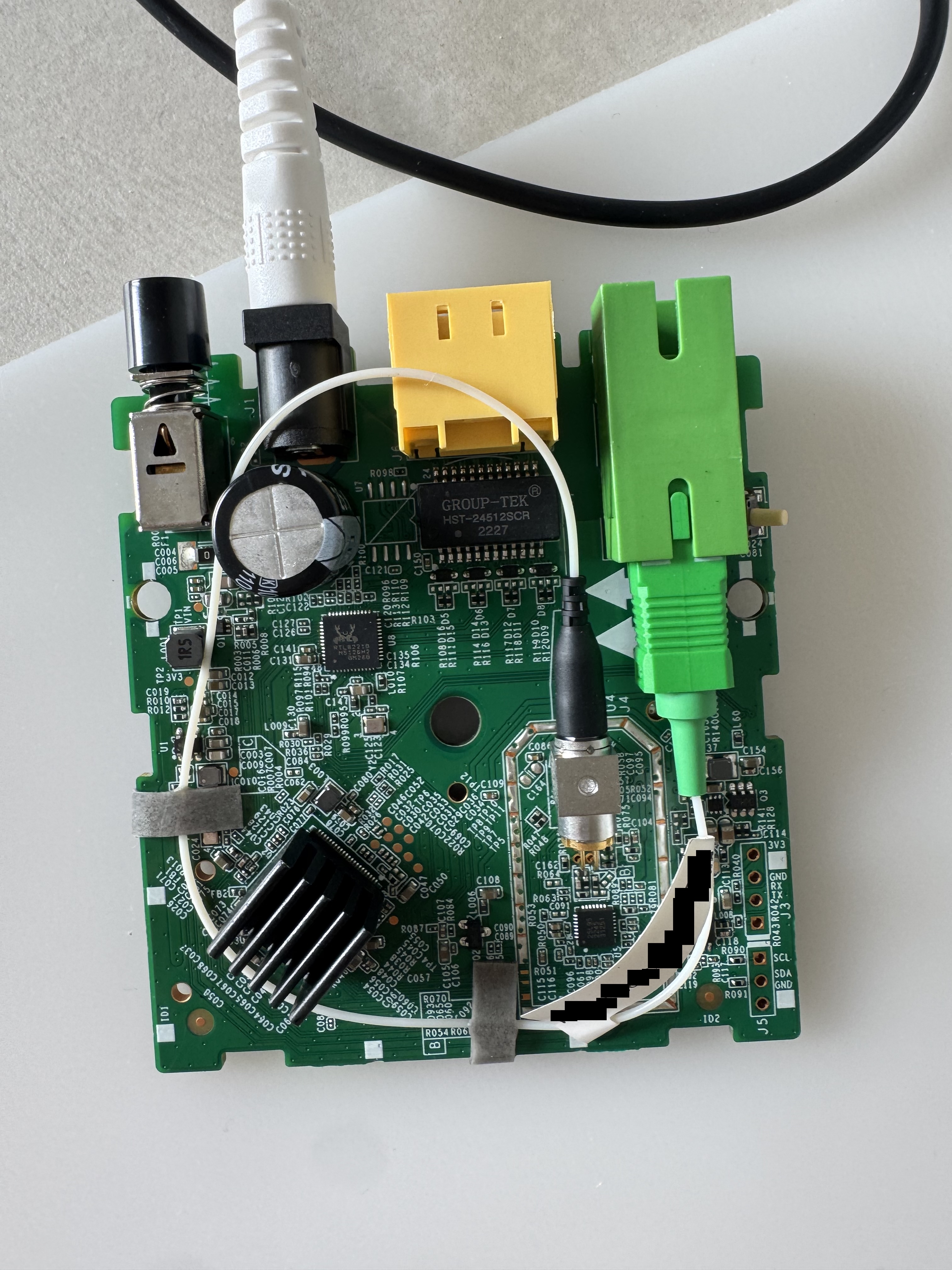

After all that hard work, I was rewarded with a juicy teardown!
While I was able to identify most of the components, the processor (hidden under the heat sink in on the bottom left of the top view) was unlabelled. This made it difficult to figure out if there were any debug interfaces I could target.
Fortunately, a closer look at the board revealed some interested ports…

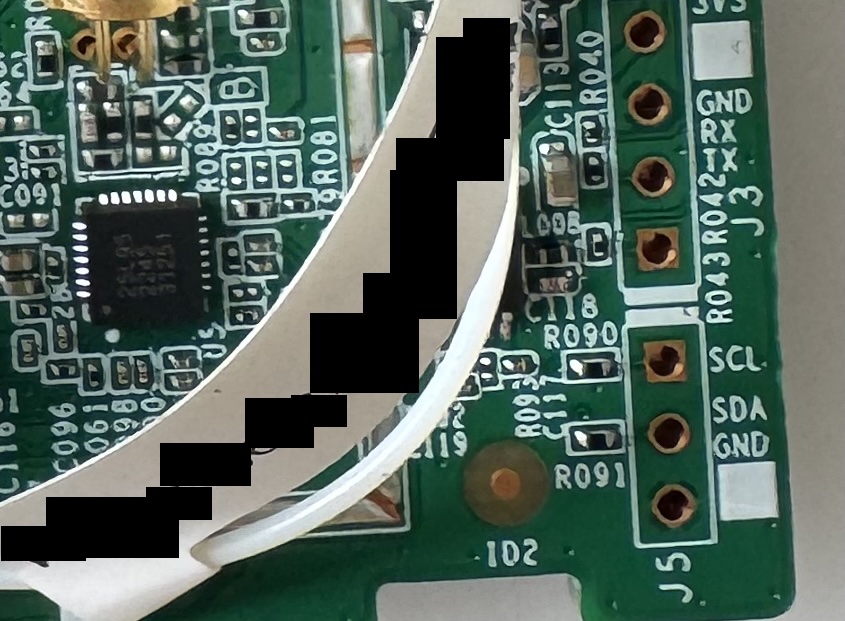

The ports labelled GND, RX, and TX suggested that a potential UART interface, while SCL and SDA indicated a potential I2C interface.
I got to work with the multimeter and confirmed the ground ports, but the readings for the RX port seemed off. Worse, when I tested the ports with a logic analyzer, I got complete gibberish! Typical baud rates for other ONTs like 115200 Hz failed to reveal anything.
A day later, I realised my mistake: I had been trying to analyze the signals one port at a time. It was only when I connected the ground and RX ports at the same time that I got recognisable data at 115200 Hz. Great success!
Hardware hacking hot tip #2: Don’t analyze serial interface ports in isolation!
When powering the device on, it would first expose the bootloader:
9601D
PRELOADER Bismarck 3.5
II: LPLR:1012, PLR:9aa5a8d9, Build_date:21080422, Toolkit:rsdk-1.5.6-5281-EB-2.6.30-0.9.30.3-131105
II: Disable OCP Timeout Monitor
II: Disable LX Timeout Monitor
II: TLB initial done:
.ro section works!
.text and .ro sections work!
EE: REG32(0xbb000044)[3:2]:0x2 !=0
II: Enable Triple Synchronizer
II:cg_cpu_clk_init done
II: CPU 300MHz (600/2/0), MEM 325MHz, LX 200MHz, SPIF 25MHz
AK: DRAM AUTO CALIBRATION(20210202)
AK: ZQ Calibration Passed
AK: ZQ Calibration Passed
AK: ZQ Calibration Passed
AK: ZQ Calibration Passed
AK: MR0: 0x00100952
AK: MR1: 0x00110040
AK: MR2: 0x00120000
AK: MR3: 0x00130000
AK: clear dwdqor
AK: Bit/max_r_s/max_r_l/max_w_s/max_w_l Bit/max_r_s/max_r_l/max_w_s/max_w_l(Hex)
[ 0] 0 1f 0 17 [16] 0 1f 0 17
[ 1] 0 1f 0 17 [17] 0 1f 0 17
[ 2] 0 1f 0 15 [18] 0 1f 0 15
[ 3] 0 1f 0 15 [19] 0 1f 0 15
[ 4] 0 1f 0 17 [20] 0 1f 0 17
[ 5] 0 1f 0 15 [21] 0 1f 0 17
[ 6] 0 1f 0 17 [22] 0 1f 0 17
[ 7] 0 1f 0 17 [23] 0 1f 0 17
[ 8] 0 1f 0 17 [24] 0 1f 0 17
[ 9] 0 1f 0 19 [25] 0 1f 0 19
[10] 0 1f 0 17 [26] 0 1f 0 19
[11] 0 1f 0 19 [27] 0 1f 0 19
[12] 0 1f 0 19 [28] 0 1f 0 19
[13] 0 1f 0 19 [29] 0 1f 0 19
[14] 0 1d 0 1b [30] 0 1f 0 1b
[15] 0 1f 0 17 [31] 0 1f 0 17
AK: DQ enable delay sync with DQ delay tap.
0xb80015D0=0x07070707, 0xb80015D4=0x07070707, 0xb80015D8=0x08070807, 0xb80015DC=0x07090808
AK: DRAM size = 0x2000000
AK: Disable read after write function
AK: Support tREFI divided by 4
AK: dram auto calibrtaion is done
II: MEM_PROBE_OK
II: MEM_XLAT_OK
II: MEM_TO_REG_OK
II: MEM_CAL_OK
II: Change Stack from 0x9f00375c to 0x806fffe0
II: U-boot Magic Number is 0x27051956
II: Inflating U-Boot (0x80700040 -> 0x81c00000)… OK
II: Starting U-boot…
U-Boot 2011.12.NA-svn35647 (Aug 04 2021 - 22:50:21)
Board: RTL9601D, CPU:300MHz, LX:200MHx, MEM:325MHz, Type:DDR2
DRAM: 32 MB
SPI-NAND Flash: 2C14/Mode0 1x128MB
Create bbt:
Loading 16384B env. variables from offset 0xc0000
Loading 16384B env. variables from offset 0xe0000
Loaded 16384B env. variables from offset 0xc0000
Net: LUNA GMAC
Warning: eth device name has a space!
Hit any key to stop autoboot: 1
This revealed important information like the board (RTL9601D) and SPI-NAND flash storage.
If the autoboot wasn’t interrupted, it then proceeded to the actual Linux operating system:
## Booting kernel from Legacy Image at 81000000 …
Image Name: Linux Kernel Image
Created: 2024-10-16 8:49:19 UTC
Image Type: MIPS Linux Kernel Image (lzma compressed)
Data Size: 909109 Bytes = 887.8 KB
Load Address: 80000000
Entry Point: 80000000
Verifying Checksum … OK
Uncompressing Kernel Image … OK
Starting kernel …
...
BusyBox v1.12.4 (2024-10-16 16:46:28 CST) built-in shell (ash)
Enter ‘help’ for a list of built-in commands.
#
Shell unlocked!
Getting Network Access 🔗
While a UART shell granted a lot of visibility, I still wanted to understand why I couldn’t ping the device directly over the network connection.
I checked for exposed network interfaces:
# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 16436 qdisc noqueue state UNKNOWN
link/loopback 00:00:00:00:80:05 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UNKNOWN qlen 1000
link/ether <CENSORED>> brd ff:ff:ff:ff:ff:ff
3: eth0.2: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN qlen 1000
link/ether 00:00:00:01:00:02 brd ff:ff:ff:ff:ff:ff
4: eth0.3: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN qlen 1000
link/ether 00:00:00:01:00:02 brd ff:ff:ff:ff:ff:ff
5: nas0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc pfifo_fast state DOWN qlen 1000
link/ether 00:00:00:01:00:02 brd ff:ff:ff:ff:ff:ff
6: pon0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN qlen 1000
link/ether <CENSORED> brd ff:ff:ff:ff:ff:ff
7: br0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN
link/ether <CENSORED> brd ff:ff:ff:ff:ff:ff
8: nas0_0: <BROADCAST,UP> mtu 1500 qdisc pfifo_fast state UNKNOWN qlen 10
link/ether <CENSORED> brd ff:ff:ff:ff:ff:ff
Interestingly, the ethernet interface eth0 didn’t have an IP address set, but doing so manually using ip addr add 192.168.100.1/24 dev eth0 still failed to make it reachable.
When I monitored the connection using Wireshark on my connected laptop, I realised that pinging out from the ONT to my laptop worked - but even though my laptop responded to the ping, the ONT didn’t seem to receive the packet.
My next instinct was to check for firewall rules with iptables:
# iptables -L
Chain INPUT (policy ACCEPT)
target prot opt source destination
DROP tcp — anywhere anywhere tcp dpt:http
DROP udp — anywhere anywhere udp dpt:http
DROP tcp — anywhere anywhere tcp dpt:telnet
DROP udp — anywhere anywhere udp dpt:telnet
ACCEPT udp — anywhere anywhere udp dpt:router
DROP all — anywhere 239.255.255.250
ACCEPT all — anywhere 224.0.0.0/4
dhcp_port_filter all — anywhere anywhere
Chain FORWARD (policy ACCEPT)
target prot opt source destination
TCPMSS tcp — anywhere anywhere tcp flags:SYN,RST/SYN TCPMSS clamp to PMTU
TCPMSS tcp — anywhere anywhere tcp flags:SYN,RST/SYN tcpmss match 1452:1536TCPMSS set 1452
Chain OUTPUT (policy ACCEPT)
target prot opt source destination
Chain dhcp_port_filter (1 references)
target prot opt source destination
While this was interesting (iptables rules dropped telnet and http), it didn’t answer the question why ICMP (used for ping) was failing.
After some ChatGPT consultation, I was prompted (lol) to check ebtables (which controls Layer 2 filtering) instead:
# ebtables -L
Bridge table: filter
Bridge chain: INPUT, entries: 1, policy: ACCEPT
-j br_wan
Bridge chain: FORWARD, entries: 1, policy: ACCEPT
-j portmapping
Bridge chain: OUTPUT, entries: 1, policy: ACCEPT
-j br_wan_out
Bridge chain: br_wan, entries: 1, policy: RETURN
-i nas0_0 -j DROP
Bridge chain: br_wan_out, entries: 1, policy: RETURN
-o nas0_0 -j DROP
Bridge chain: portmapping, entries: 9, policy: ACCEPT
-i nas0_0 -o eth0.2 -j RETURN
-i eth0.2 -o nas0_0 -j RETURN
-i eth+ -o eth+ -j RETURN
-i eth+ -o wlan+ -j RETURN
-i wlan+ -o eth+ -j RETURN
-i wlan+ -o wlan+ -j RETURN
-i eth0+ -j DROP
-i wlan+ -j DROP
-i nas0_0 -j DROP
This was the answer - -i eth0+ -j DROP was dropping all forwarding traffic received on the ethernet interface! This meant that while routers and other devices could communicate through the ethernet interface to the fibre-optic interface, they couldn’t use it to communicate with the ONT directly. I could clear this obstacle with a simple ebtables -F and iptables -F to flush all the filtering rules.
Hardware hacking hot tip #3: Inspect all network filtering rules for potential hardening!
Another gotcha was that according to the ip addr output, br0 and eth0 were sharing the same MAC address. In short, network traffic was bridged and IP layer traffic would be handled by br0. Thus, I needed to set the static IP address on br0 instead of eth0 and bring it up:
ip addr add 192.168.100.1/24 dev br0
ip link set br0 up
Once this was done, I could now ping and perform any other network communication with the ONT over the ethernet connection.
Exploring the Web Interface 🔗
Next, I performed a bit of reconaissance to understand the running.
# ps
PID USER VSZ STAT COMMAND
1 admin 892 S init
2 admin 0 SW< [kthreadd]
3 admin 0 SWN [ksoftirqd/0]
4 admin 0 SW< [events/0]
5 admin 0 SW< [khelper]
8 admin 0 SW< [async/mgr]
51 admin 0 SW< [kblockd/0]
64 admin 0 SW [netlog]
69 admin 0 SW [pdflush]
70 admin 0 SW [pdflush]
71 admin 0 SW< [kswapd0]
89 admin 0 SW< [mtdblockd]
158 admin 0 SW< [yaffs-bg-1]
171 admin 2064 S configd
354 admin 24292 S omci_app -s <CENSORED> -f off 0 -m disable -d err -
363 admin 1696 S /bin/pondetect
562 admin 900 R -/bin/sh
563 admin 592 S /bin/inetd
572 admin 2848 S /bin/hiproc
574 admin 0 DW< [led_swBlink]
610 admin 24292 S omci_app -s <CENSORED> -f off 0 -m disable -d err -
611 admin 24292 S omci_app -s <CENSORED> -f off 0 -m disable -d err -
612 admin 24292 S omci_app -s <CENSORED> -f off 0 -m disable -d err -
708 admin 24292 S omci_app -s <CENSORED> -f off 0 -m disable -d err -
709 admin 24292 S omci_app -s <CENSORED> -f off 0 -m disable -d err -
710 admin 24292 S omci_app -s <CENSORED> -f off 0 -m disable -d err -
711 admin 24292 S omci_app -s <CENSORED> -f off 0 -m disable -d err -
820 admin 892 R ps
Checking the strings for the binary files suggested that hiproc was responsible for the web console (HTML-related strings), but due to the limited binaries available on Busybox, I had to manually check /proc to see which port it was on:
# cat /proc/572/net/tcp
sl local_address rem_address st tx_queue rx_queue tr tm->when retrnsmt uid timeout inode
0: 00000000:9CC3 00000000:0000 0A 00000000:00000000 00:00000000 00000000 0 0 835 1 80f36880 300 0 0 2 -1
1: 00000000:0017 00000000:0000 0A 00000000:00000000 00:00000000 00000000 0 0 840 1 80f36040 300 0 0 2 -1

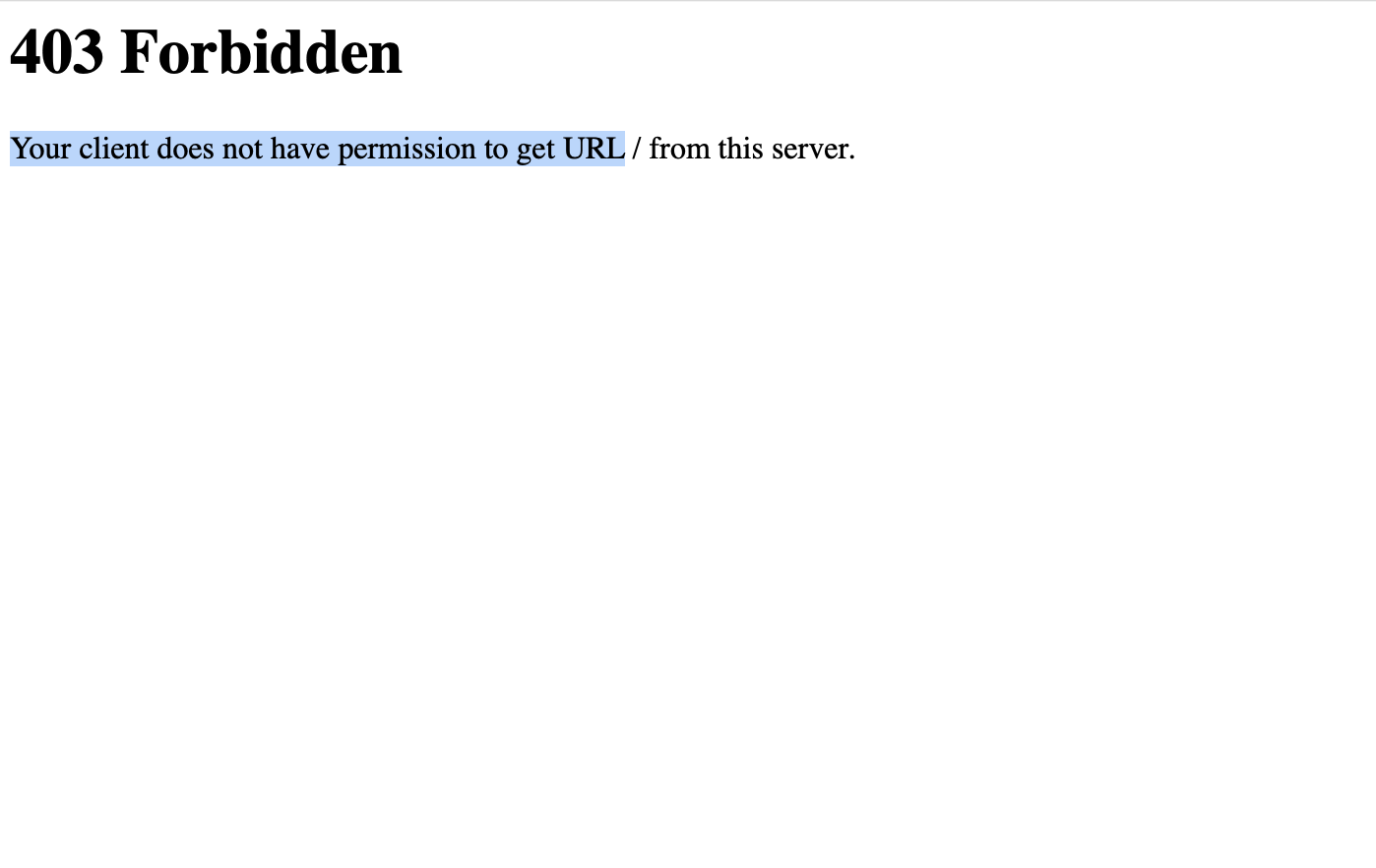

In this case, 9CC3 converted to decimal was 40131! I excitedly accessed the port on a browser, and…
The response still revealed important information like the server version:
HTTP/1.0 403 Forbidden
Date: Thu, 01 Jan 1970 00:17:14 GMT
Server: Boa/0.93.15
Connection: close
Content-Type: text/html
<HTML><HEAD><TITLE>403 Forbidden</TITLE></HEAD>
<BODY><H1>403 Forbidden</H1>
Your client does not have permission to get URL / from this server.
</BODY></HTML>
Pushing on, I transferred the hiproc binary out using netcat for futher analysis. I started from the Your client does not have permission to get URL string, then traced back any references in Ghidra.

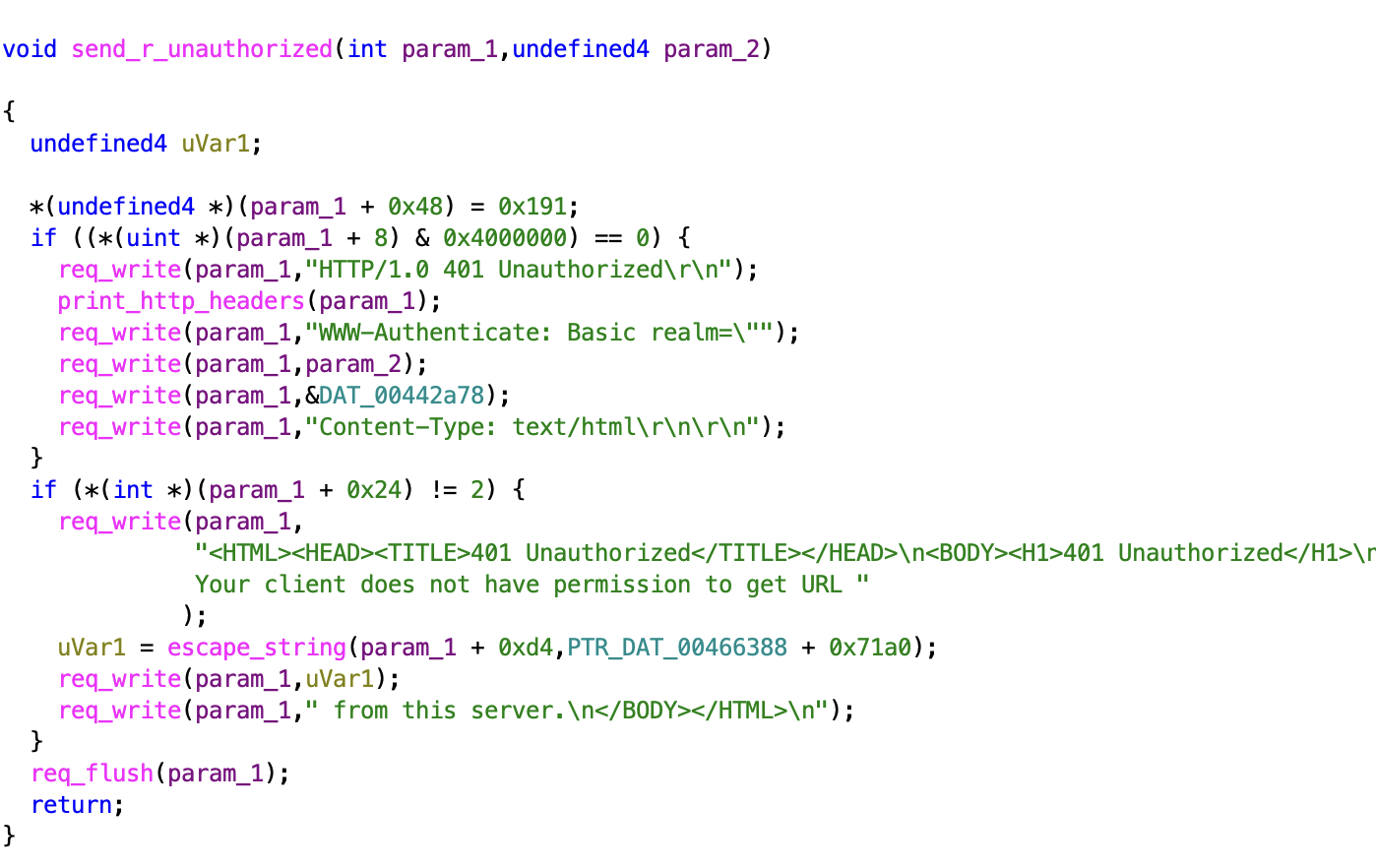

After a bit of spelunking, I realised that while the web console had been pretty much disabled (it wasn’t referencing any configuration files), it was using /etc as the server root, allowing me to access files like /etc/passwd by browsing directly to it. Nevertheless, this wasn’t too interesting because I already had shell access.
Next Steps 🔗
After extracting all the config files and binaries, there’s a lot more to reverse engineer and analyze, but for now I feel pretty satisfied with getting access to a previously-undocumented ONT device. I hope to publish a couple more mini hardware hacking blogposts with practical tips to make it easier to get into this domain of research.
